Introduction to Stacks - Basics and Operations | Data Structures and Algorithms Day #6
Learn the basics of the stack data structure with operations like push, pop, and peek
Stacks are a fundamental data structure in programming, offering a simple yet powerful way to manage data. They are widely used in algorithms, from expression parsing to undo operations in text editors. In this article, we’ll explore the basics of stacks, demonstrate key operations like push, pop, and peek with Python and JavaScript examples, and discuss their real-world applications. By the end, you’ll understand how to implement a stack, its time complexity, and common use cases.
What is a Stack?
A stack data structure is a collection of elements that follows the LIFO (Last-In, First-Out) principle. This means that the last element added to the stack is the first one to be removed. Imagine a stack of plates: the plate placed on top is the first to be removed.
Key Characteristics of Stacks
LIFO Principle: The last inserted element is accessed first.
Sequential Access: You can only access the topmost element without removing others.
Dynamic Size: Can grow or shrink dynamically based on operations.
Operations on Stacks
Here are the core operations performed on a stack:
1. Push Operation
Adds an element to the top of the stack.
Python Example:
class Stack:
def __init__(self):
self.items = []
def push(self, item):
self.items.append(item)
stack = Stack()
stack.push(5) # Adds 5 to the stack
stack.push(10) # Adds 10 on top
print(stack.items) # Output: [5, 10]
JavaScript Example:
class Stack {
constructor() {
this.items = [];
}
push(item) {
this.items.push(item);
}
}
const stack = new Stack();
stack.push(5); // Adds 5 to the stack
stack.push(10); // Adds 10 on top
console.log(stack.items); // Output: [5, 10]
2. Pop Operation
Removes the top element from the stack.
Python Example:
def pop(self):
return self.items.pop() if not self.is_empty() else None
JavaScript Example:
pop() {
return this.items.length > 0 ? this.items.pop() : null;
}
3. Peek Operation
Returns the top element without removing it.
Python Example:
def peek(self):
return self.items[-1] if not self.is_empty() else None
JavaScript Example:
peek() {
return this.items.length > 0 ? this.items[this.items.length - 1] : null;
}
4. isEmpty Operation
Checks if the stack is empty.
Python Example:
def is_empty(self):
return len(self.items) == 0
JavaScript Example:
isEmpty() {
return this.items.length === 0;
}

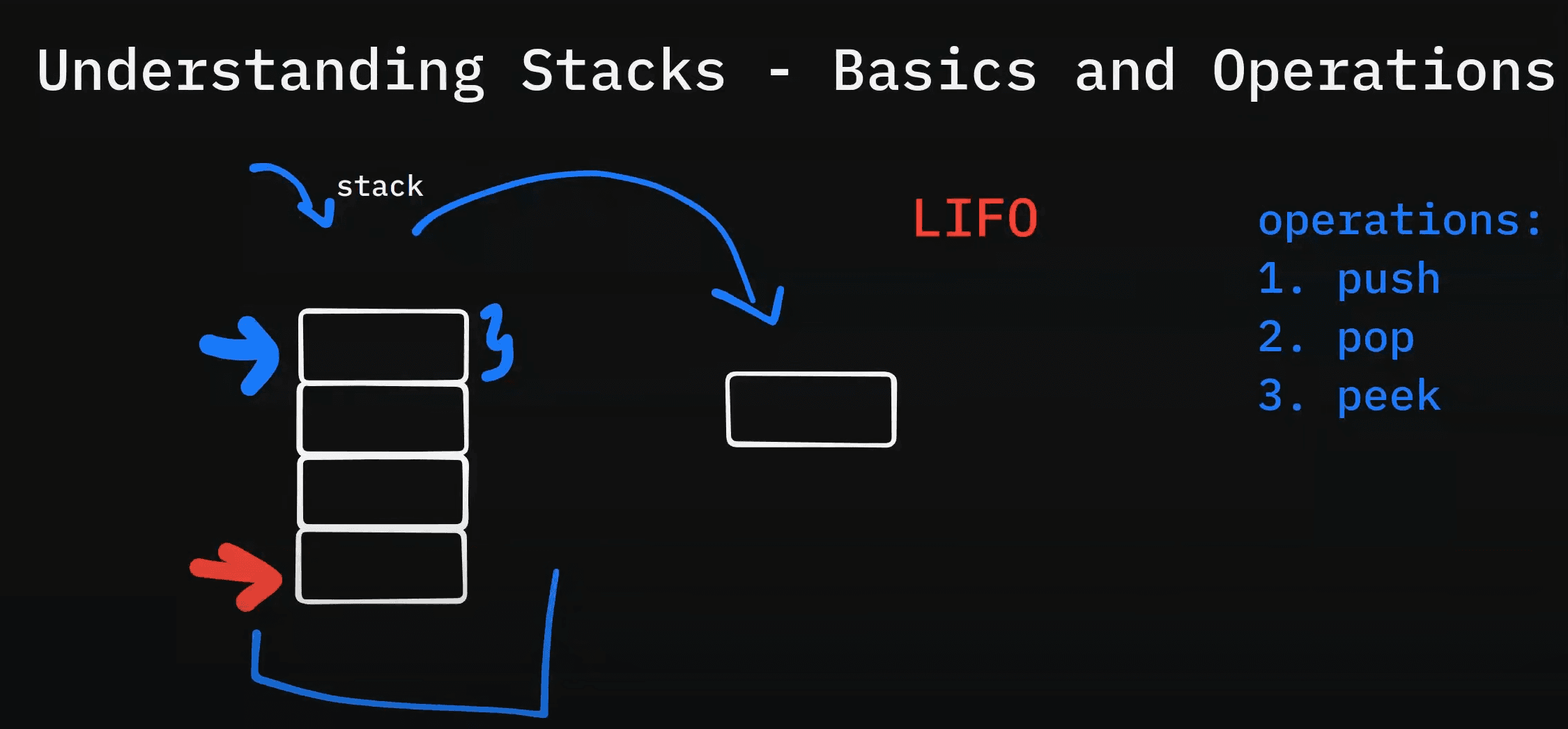

Diagram: Stack Operations
Below is a visual representation of how push and pop operations work on a stack.
Push: Add elements to the top.
Pop: Remove the top element.
Time Complexity of Stack Operations
Operation | Time Complexity |
Push | O(1) |
Pop | O(1) |
Peek | O(1) |
isEmpty | O(1) |
Since all operations only involve the top element, stacks are extremely efficient with O(1) time complexity.
Real-World Applications of Stacks
Stacks are used in various programming scenarios, including:
Undo/Redo Operations: Text editors use stacks to track user actions.
Expression Parsing: Stacks help in evaluating arithmetic expressions or handling parentheses.
Call Stacks: Programming languages manage function calls using a stack.
Browser History: Backtracking through visited pages uses a stack.
Types of Stacks: Static vs. Dynamic
Static Stack | Dynamic Stack |
Fixed-size, limited space | Grows dynamically with new elements |
Example: Array-based stack | Example: Linked list-based stack |
Common Misconceptions about Stacks
"Stacks are only for storing integers."
Stacks can store any data type, including strings and objects."Stacks are always inefficient."
While not ideal for all scenarios, stacks offer O(1) time complexity for most operations, making them highly efficient for specific use cases.
For more on related data structures, check out:
FAQ Section
What is the difference between push and pop operations?
Push: Adds an element to the top of the stack.
Pop: Removes the top element from the stack.
How is a stack implemented in Python?
Stacks in Python can be implemented using lists or the deque module from the collections library.
What are the common uses of stacks in real-world applications?
Stacks are used in undo operations, expression parsing, and managing function calls through the call stack.
Conclusion
Stacks are an essential data structure that offers simple and efficient data management through the LIFO principle. With operations like push, pop, and peek, stacks are widely used in both theoretical and practical applications, such as expression parsing and browser history management.
Try implementing a stack in your preferred programming language using the examples above. Understanding how stacks work will not only improve your knowledge of data structures but also help you solve algorithmic problems more efficiently.
